Razor Barbed Wire,concertina razor wire

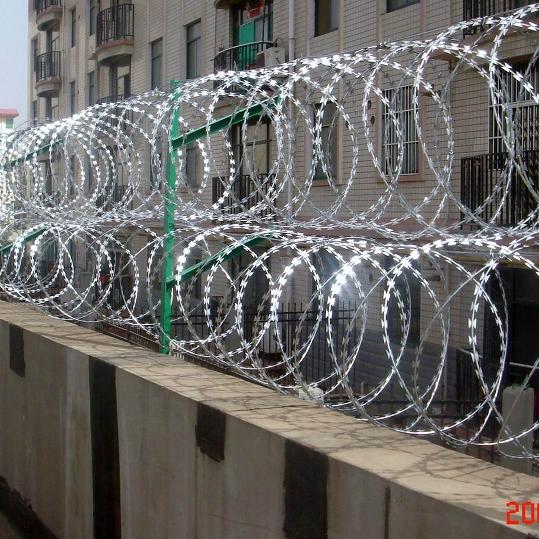

Razor barbed Wire mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.
Sorts of Razor Barbed Wire:
1. Single loop razor wire
2. Concertina/Cross razor wire
3. Welded razor wire(razor mesh)
4. Flat razor wire
Material of Razor Barbed Wire:
1. High quality low carbon wire
2. Galvanized wire(Electro galvanized and hot dipped galvanized)
3. PVC Coated Wire(In green,blue,etc.)
4. Stainless Steel(430;304,304L,316,316L)
Popular Specifications:
| Razor blade type and specification | |||||
| Reference Number | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±1 | 21±1 | 100±1 |
Sepcification of the razor barbed wire :
Outer diameter | No.of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7M-8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 54 | 11M-15M | CBT-65 | Single coil |
500mm | 102 | 15M-18M | BTO-12.18.22.28.30 | Cross type |
600mm | 86 | 13M-16M | BTO-12.18.22.28.30 | Cross type |
700mm | 72 | 12M-15M | BTO-12.18.22.28.30 | Cross type |
800mm | 64 | 13M-15M | BTO-12.18.22.28.30 | Cross type |
960mm | 52 | 12M-15M | BTO-12.18.22.28.30 | Cross type |
Features of Razor Barbed Wire:
1. A variety of colors like green,blue,yellow,etc.
3. Tensile strenth:30-45kgs/sq.mm

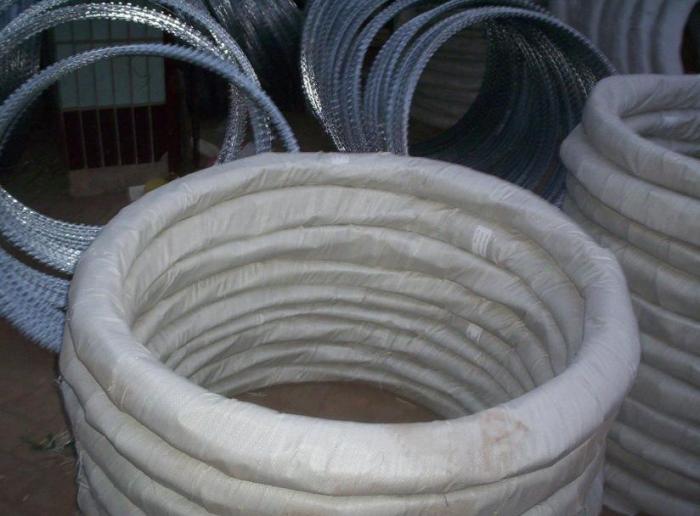

4. Packing:In coil of 25 klios or 50kilos net,line with pvc strips,then warpped woth pvc or hessuan cloth.
Razor Barbed Wire Application:
<span style="margin: 0px; padding: 0px; border: 0px; font-sty
| Size: | BTO 22 To CBT 65 |
| Packing: | Customer inquired |
| Delivery time: | 14 days |
