Same design, different sizes |
|
Model No. | Exterior dimension | Wire | Dimension |
|
|
Guage | of Grid |
|
|
| LxWxH(mm) | mm | mm |
|
|
1 | 800x600x640 | 4.1 | 50*50 |
|
|
4.7 | 50*50 |
|
|
5.3 | 50*50 |
|
|
5.6 | 50*50 |
|
|
5.8 | 50*50 |
|
|
2 | 1000x800x840 | 4.7 | 50*50 |
|
|
5.3 | 50*50 |
|
|
5.6 | 50*50 |
|
|
5.8 | 50*50 |
|
|
6.0 | 50*50 |
|
|
3 | 1200x1000x890 | 4.7 | 50*50 |
|
|
5.3 | 50*50 |
|
|
5.6 | 50*50 |
|
|
6.0 | 50*50 |
|
|
Material | Mild steel Q235 |
Available design | Top lid/bar runner/forklift guide/with inner divider |
Available accessories | with square legs and wheels |
Application area | Warehouse, logistic, recycling industry |
Finish | Zinc/hot-dip galvanized/powder coating |
Remark | Customized or OEM support |

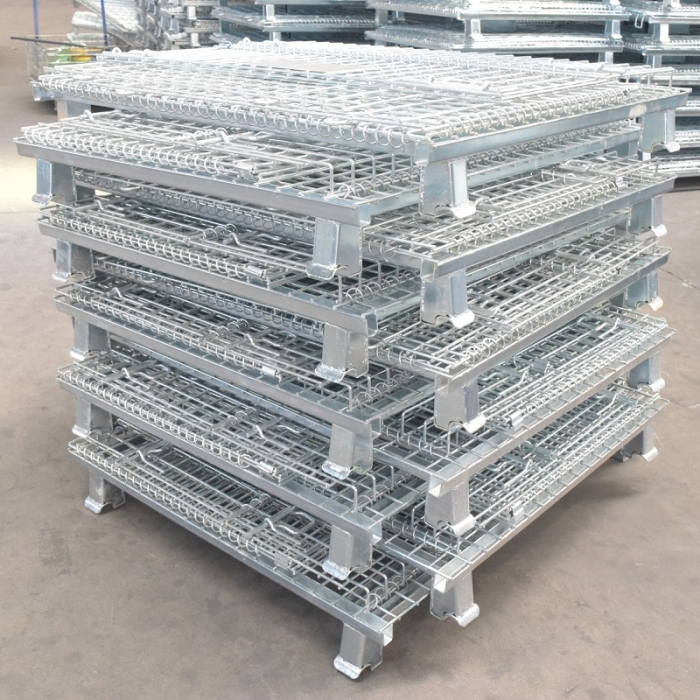

Product Features | 1. Collapsible-save space when not in use, ideal for return journeys |
2. Standard half-hinged gate access |
3. Square-stack leg - secure stacking |

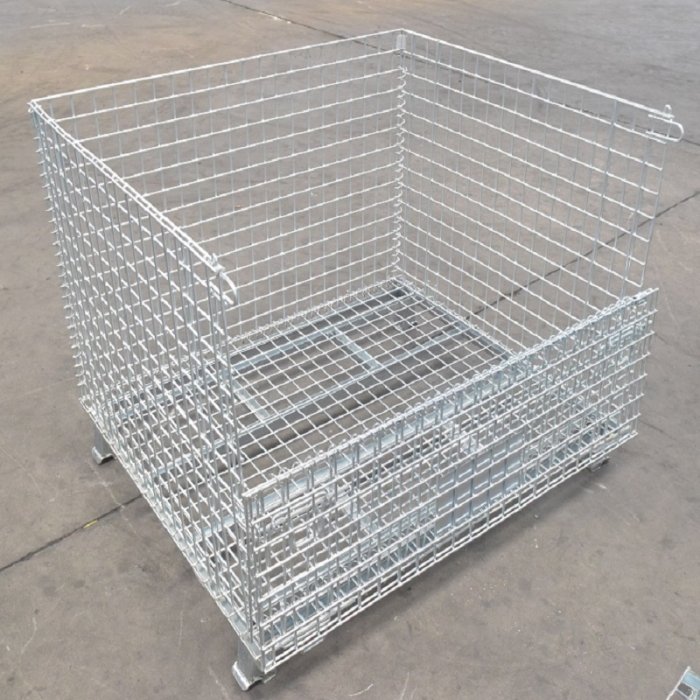

4. Open wire mesh design allows for full visibility for inventory checks, |
ventilation and cleanness. |
5. Easily moved around by forklift, even when fully loaded |
